مكان المنشأ:
الصين
اسم العلامة التجارية:
QIEAL ZH
رقم الموديل:
LR 201 2RS

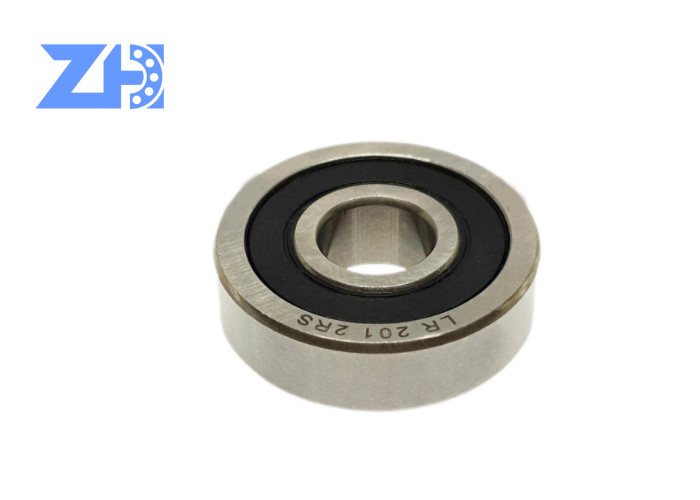

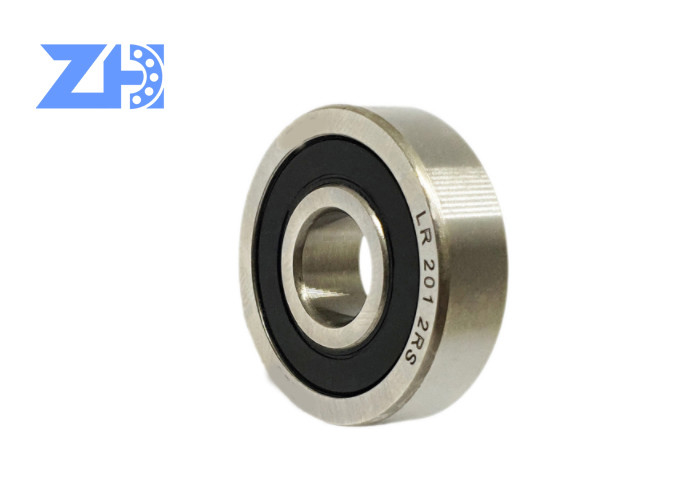

بكرات المسار LR 201 2RS LR201-2RSR U بكرة مسار محمل
ورقة بيانات المحامل:
| الموديل | الوزن | الأبعاد (مم) | تصنيفات الحمل الأساسية | حمل حد التعب | السرعة المحدودة | |||||||||
| ≈(جم) | D | d | B | C | R | Rs | Cw(N) | Cow(N) | Puw(N) | أختام nD | دروع nD | |||
| LR 201-15 | LR201RR | LR 201 RR | 70 | 35 | 12 | 15 | 10 | - | 0.6 | 5600 | 2700 | 112 | 12000 | 15000 |
| LR 201-15 U | LR201RRU | LR 201 RRU | 70 | 35 | 12 | 15 | 10 | 500 | 0.6 | 5600 | 2700 | 112 | 12000 | 15000 |
| LR 201-15KDD | 70 | 35 | 12 | 15 | 10 | - | 0.6 | 5600 | 2700 | 112 | 12000 | 15000 | ||
| LR201-15 KDDU | 70 | 35 | 12 | 15 | 10 | 500 | 0.6 | 5600 | 2700 | 112 | 12000 | 15000 | ||
| LR 202 | LR202 | 70 | 40 | 15 | 11 | 11 | - | 0.6 | 6500 | 3300 | 136 | 11000 | 13000 | |
| LR 202 U | LR202U | 361202R | 70 | 40 | 15 | 11 | 11 | 500 | 0.6 | 6500 | 3300 | 136 | 11000 | 13000 |
| LR 202 KDD | LR202KDD | 70 | 40 | 15 | 11 | 11 | - | 0.6 | 6500 | 3300 | 136 | 11000 | 13000 | |
| LR 202 KDDU | LR202KDDU | 70 | 40 | 15 | 11 | 11 | 500 | 0.6 | 6500 | 3300 | 136 | 11000 | 13000 | |
| LR 202-14 | LR202RR | LR 202 RR | 80 | 40 | 15 | 14.4 | 11 | - | 0.6 | 6500 | 3300 | 136 | 11000 | 13000 |
| LR 202-14 U | LR202RRU | LR 202 RRU | 80 | 40 | 15 | 14.4 | 11 | 500 | 0.6 | 6500 | 3300 | 136 | 11000 | 13000 |
| LR 202-14KDD | 80 | 40 | 15 | 14.4 | 11 | - | 0.6 | 6500 | 3300 | 136 | 11000 | 13000 | ||
| LR202-14 KDDU | 80 | 40 | 15 | 14.4 | 11 | 500 | 0.6 | 6500 | 3300 | 136 | 11000 | 13000 | ||
| LR 203 | LR203 | 110 | 47 | 17 | 12 | 12 | - | 0.6 | 8400 | 4400 | 183 | 9000 | 12000 | |
| LR 203 U | LR203U | 361203R | 110 | 47 | 17 | 12 | 12 | 500 | 0.6 | 8400 | 4400 | 183 | 9000 | 12000 |
| LR 203 KDD | LR203KDD | 110 | 47 | 17 | 12 | 12 | - | 0.6 | 8400 | 4400 | 183 | 9000 | 12000 | |
| LR 203 KDDU | LR203KDDU | 110 | 47 | 17 | 12 | 12 | 500 | 0.6 | 8400 | 4400 | 183 | 9000 | 12000 | |
| LR 204 | LR204 | 150 | 52 | 20 | 14 | 14 | - | 1 | 10500 | 5600 | 233 | 8000 | 10000 | |
| LR 204 U | LR204U | 361204R | 150 | 52 | 20 | 14 | 14 | 500 | 1 | 10500 | 5600 | 233 | 8000 | 10000 |
| LR 204 KDD | LR204KDD | 150 | 52 | 20 | 14 | 14 | - | 1 | 10500 | 5600 | 233 | 8000 | 10000 | |
| LR 204 KDDU | LR204KDDU | 150 | 52 | 20 | 14 | 14 | 500 | 1 | 10500 | 5600 | 233 | 8000 | 10000 | |
| LR 205 | LR205 | 230 | 62 | 25 | 15 | 15 | - | 1 | 12500 | 7100 | 291 | 7000 | 8500 | |
| LR 205 U | LR205U | 361205R | 230 | 62 | 25 | 15 | 15 | 500 | 1 | 12500 | 7100 | 291 | 7000 | 8500 |
| LR 205 KDD | LR205KDD | 230 | 62 | 25 | 15 | 15 | - | 1 | 12500 | 7100 | 291 | 7000 | 8500 | |
| LR 205 KDDU | LR205KDDU | 230 | 62 | 25 | 15 | 15 | 500 | 1 | 12500 | 7100 | 291 | 7000 | 8500 | |
| LR 206 | LR206 | 330 | 72 | 30 | 16 | 16 | - | 1 | 16600 | 9600 | 391 | 5500 | 7500 | |
| LR 206 U | LR206U | 361206R | 330 | 72 | 30 | 16 | 16 | 500 | 1 | 16600 | 9600 | 391 | 5500 | 7500 |
| LR 206 KDD | LR206KDD | 330 | 72 | 30 | 16 | 16 | - | 1 | 16600 | 9600 | 391 | 5500 | 7500 | |
| LR 206 KDDU | LR206KDDU | 330 | 72 | 30 | 16 | 16 | 500 | 1 | 16600 | 9600 | 391 | 5500 | 7500 | |
| LR 207 | LR207 | 400 | 80 | 35 | 17 | 17 | - | 1.1 | 20200 | 11900 | 490 | 4500 | 6300 | |
| LR 207 U | LR207U | 361207R | 400 | 80 | 35 | 17 | 17 | 500 | 1.1 | 20200 | 11900 | 490 | 4500 | 6300 |
| LR 207 KDD | LR207KDD | 400 | 80 | 35 | 17 | 17 | - | 1.1 | 20200 | 11900 | 490 | 4500 | 6300 | |
| LR 207 KDDU | LR207KDDU | 400 | 80 | 35 | 17 | 17 | 500 | 1.1 | 20200 | 11900 | 490 | 4500 | 6300 | |
| LR 208 | LR208 | 450 | 85 | 40 | 18 | 18 | - | 1.1 | 22800 | 13600 | 530 | 4000 | 5000 | |
| LR 208 U | LR208U | 450 | 85 | 40 | 18 | 18 | 500 | 1.1 | 22800 | 13600 | 530 | 4000 | 5000 | |
| LR 208 KDD | LR208KDD | 450 | 85 | 40 | 18 | 18 | - | 1.1 | 22800 | 13600 | 530 | 4000 | 5000 | |
| LR 208 KDDU | LR208KDDU | 450 | 85 | 40 | 18 | 18 | 500 | 1.1 | 22800 | 13600 | 530 | 4000 | 5000 | |
| LR 209 | LR209 | 500 | 90 | 45 | 19 | 19 | - | 1.1 | 22500 | 13700 | 564 | 3600 | 4500 | |
| LR 209 U | LR209U | 500 | 90 | 45 | 19 | 19 | 500 | 1.1 | 22500 | 13700 | 564 | 3600 | 4500 | |
| LR 209 KDD | LR209KDD | 500 | 90 | 45 | 19 | 19 | - | 1.1 | 22500 | 13700 | 564 | 3600 | 4500 | |
| LR 209 KDDU | LR209KDDU | 500 | 90 | 45 | 19 | 19 | 500 | 1.1 | 22500 | 13700 | 564 | 3600 | 4500 | |
